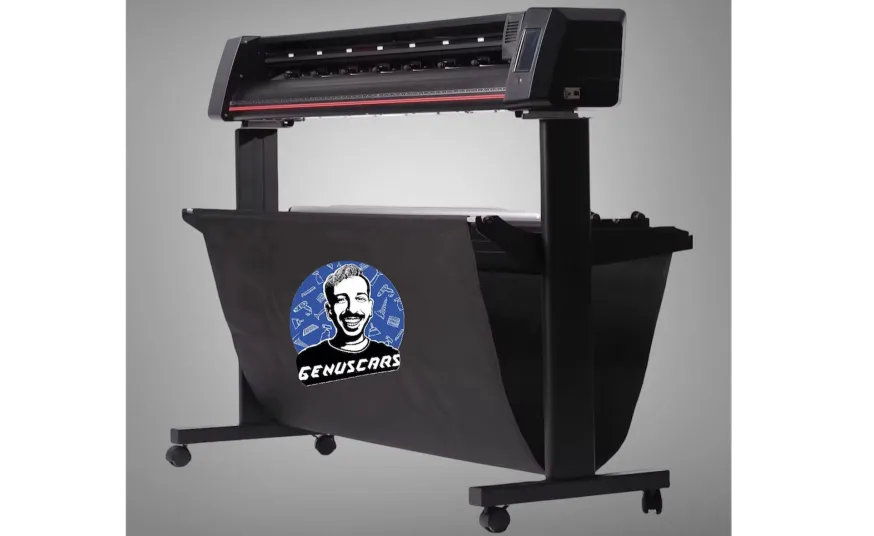

Genus Plotter With Software
PPF Cutting Plotter
Highlight Features :
High-definition camera automatic contour cutting, Accurate identify the marks of different colors and materials.
Multi-point alignment system, segmented contour cutting, automatic deviation correction.

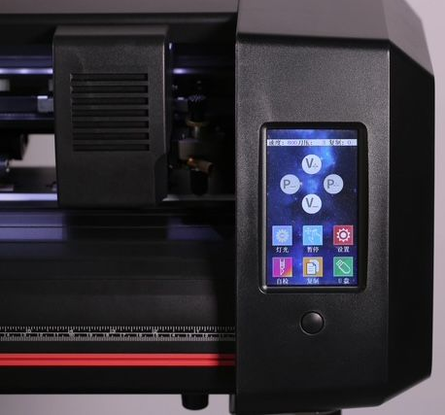

4.3-inch touch screen, high resolution, high definition.
High precision steel wheel, accurate transmission to prevent deviation.

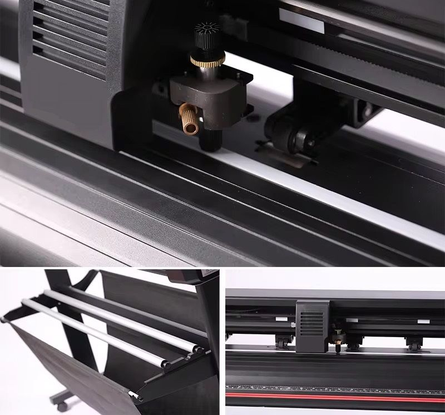

Metallic carriage, which can work continuously and smoothly for a long time and excellent heat dissipation.
1Gb super-large memory, data transmission in seconds, can be long time offline cutting, data can also be timely stored even in the case of power failure.
The system can identify USB drive automatically, fast and convenient.

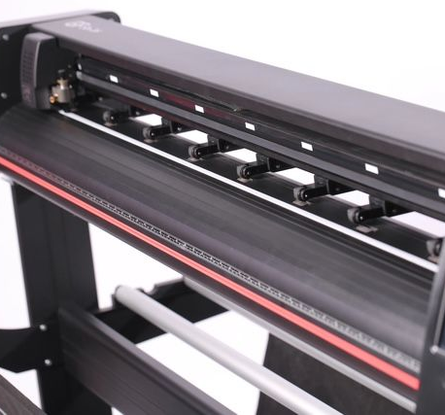

Linkage type pinch roller design, all the pinch rollers can be lifted and dropped at the same time, saving time and high efficiency.
Servo driver system, Smooth, fast and quiet working.
Red cutting groove design, media collection device and high steel body integrated. Good-looking appearance.
Technical Specifications:
Model..................................................................... CMJ241
Max. Media Width(mm) ............................................1680
Max. Cutting Width (mm) .........................................1520
Max. Contour Cutting Width (mm) ............................1500
Cutting Precision (mm) .......................................... ± 0.02
Repeat Precision (mm) .............................................. 0.1
Speed (mm/s) ....................................... 100-1000 (Digital Adjustable)
Force (g) ................................................... 1-100 (Digital Adjustable)
Data Transmission ................................... USB Cable, USB Flash, WIFI
Pinch Roller ............................................................... 11
Environment Temperature (℃) ................................. 5~35
Power Supply .......................................... AC220V (110V) ± 15% <120W
Package Size (cm) ............................................... 198×33×40
Gross Weight (kg) ...................................................... 43
